Turbine Rotor Coils

Stimple & Ward Company manufactures Turbine rotor coils up to 10 feet in length. These coils are manufactured with extreme care and precision. Turbine rotor coils are designed and manufactured based on precise rotor measurements to ensure each turn lies in the correct position in the rotor slots without stress points. All corner buildup is removed to ensure a uniform coil height throughout the winding.

Capabilities & Specifications

Copper Dimensions
    .040" x .375" Through .500" x 3.000"
Coil Dimensions
Turn Width: Fully indexable in .010" increments, up to 60" maximum.
Turn Length: 120" maximum.
 Set-up / Tooling


Our Set-up / Tooling Charges are among the lowest in the industry. With over 40 years of edge winding experience, we have developed various processes and an extensive inventory of dies to draw from to keep tooling costs low.



   Normally 6-8 weeks, however the time may be shorter depending on availability of copper strip. We maintain inventory of many common fractional inch sizes to better serve our customers and reduce lead times.

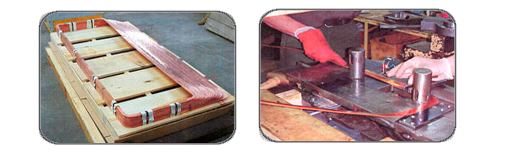

Turbine Coils

Turbine Rotor Coils

Visit Gallery


Making RFQs Easy

To help you request a turbine rotor coil quote, we have created a downloadable PDF worksheet enabling you to designate all your specifications and parameters Simply download the form, fill it out and email or submit it on our contact form.

Download Edge Wound CoilsDownload Edge Wound Coils

Contact Us FoR More information or a quotation!

If you have questions or would like to talk with an expert about our Turbine Rotor Coils, please click the contact form at the right or call us at 1-800-792-6457 or 412-364-5200 today.
